DXL4 Cable Avoidance Tool and SGV4 Signal Generator:

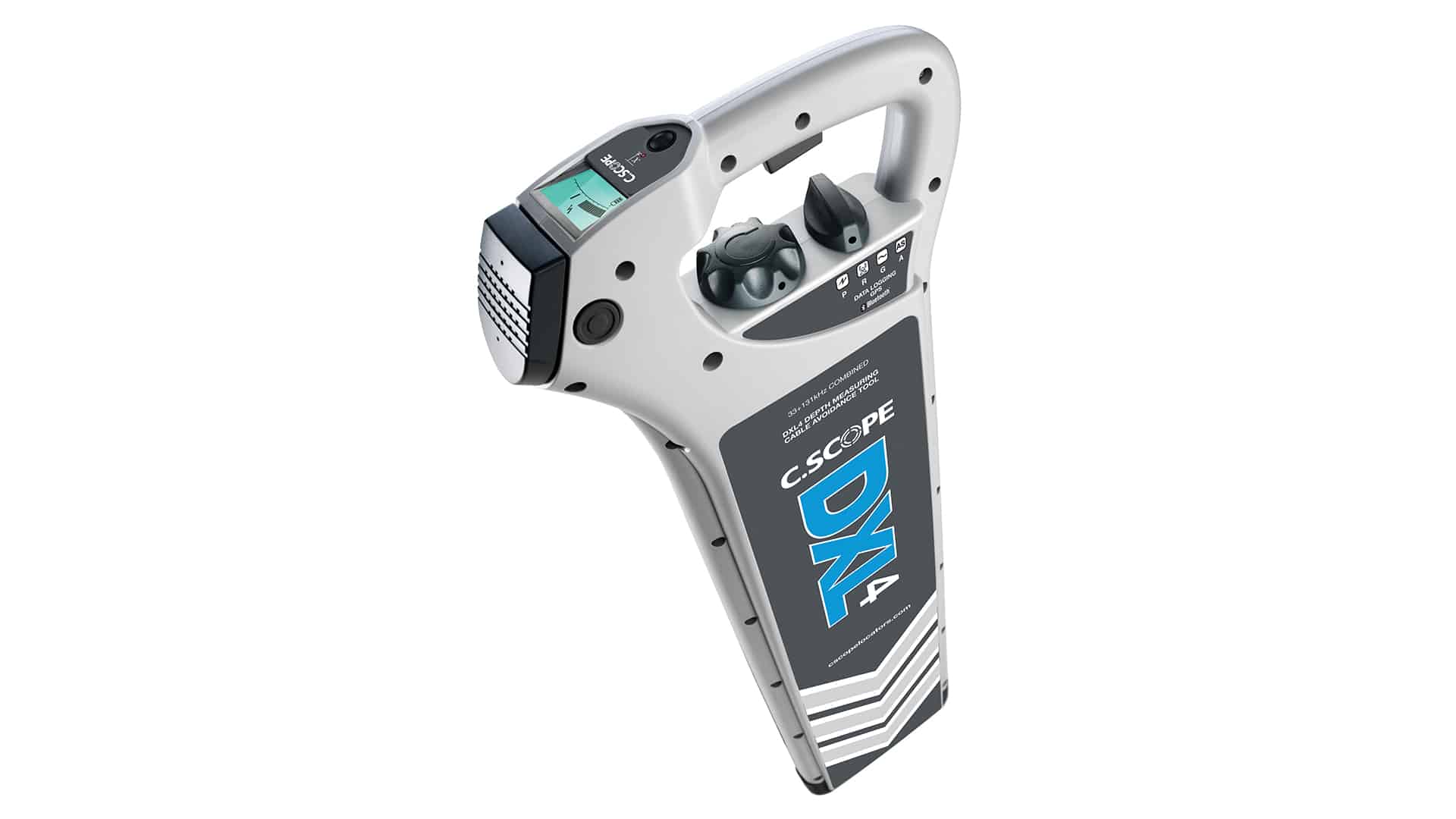

DXL4 CAT :

The C.Scope DXL4 is a dual-frequency (33+131kHz) Cable Avoidance Tool with Depth Measurement.
In-built Data Logging as standard. Bluetooth™ connectivity and GPS tracking options available.
Designed for use with an SGA4 or SGV4 Signal Generator.
Network Rail Approved.

The DXL4 Cable Avoidance Tools from C.Scope represent a significant advance in cable detecting performance.

Two versions of the DXL4 are available; the DXL4-D which has full data logging capability, and the DXL4-DBG which has full data logging capability, Bluetooth™ connectivity and GPS.

Innovative new features have been introduced and the popular existing modes of detection have been enhanced to allow the DXL4 Cable Avoidance Tool to successfully detect even the hardest to find pipes and cables. Particular attention has been paid to effect better working practices and to minimise the potential for human error to impact on operating performance.

IMPROVED PERFORMANCE ACROSS ALL FOUR DETECTION MODES
The DXL4 Cable Avoidance Tool has improved performance across all modes of detection; Power, Radio, Generator and AllScan, whilst remaining easy to operate ensuring there is only a minimal need for training or retraining.

DEPTH MEASUREMENT
The DXL4 when used alongside an SGA4 or SGV4 Signal Generator will measure and indicate the depth of buried pipes, cables and sondes at the push of a button.

SIMULTANEOUS DUAL-FREQUENCY
The simultaneous dual-frequency 33kHz and 131kHz signal output of the Signal Generators is ideal for maximising the number of buried services that can be energised and then detected, providing a significant improvement in the detection of the smaller diameter or poorly earthed cables.

OVERLOAD PROTECTION
Optimised Locator Sensitivity and Noise Rejection means that the DXL4 can deal with the highest levels of background interference found, allowing even the weakest of signals to be detected successfully.

INTELLIGENT NEW FEATURES:

ALARM ZONE
AlarmZone™ alerts operators to the presence of particularly shallow pipes or cables with the exact trigger depth adjustable by the user to best suit local requirements.

DYNAMIC SWING SENSOR
The Dynamic SwingSensor which gently alerts the operator if the locator is being swung excessively, potentially compromising the accuracy of any locates.

PEAKHOLD
PeakHold allows operators to quickly and confidently pinpoint the exact position of buried services

DATA LOGGING
The DXL4-D and DXL4-DBG Cable Avoidance Tools have full data logging capability. A years worth of data can be stored, in normal usage, on both the Cable Avoidance Tool and the SGV4 Signal Generator.

DATA LOG TRANSFER via USB
This can be conveniently transferred at any time to supervisors for analysis via a USB cable to a PC (or wirelessly via Bluetooth™ from the DBG model only to a PC, tablet or smartphone).

DATA ANALYSIS
C.SCOPE PC ‘TOOLKIT’ and ‘RELAY’ Smartphone App
The free-to-download C.Scope PC Toolkit and C.Scope Relay smartphone App analyses the stored data-logs into charts and graphs that illustrate all aspects of the use allowing training requirements to be quickly identified.

GPS
The DXL4-DBG with in-built GPS allows a record to be kept of exactly where the Locators have been used that can then be viewed in partnership with Google Earth™ or Google Maps™.

Twelve months of GPS data is stored, in normal usage. This can be conveniently transferred at any time via a USB cable to a PC or wirelessly via Bluetooth™ to a PC, tablet or smartphone to supervisors for analysis. The free-to-download C.Scope PC Toolkit and Relay smartphone App analyses the stored data.

Additionally, the Locators can be paired to third party GPS Survey equipment, via the Locators in-built Bluetooth™ facilitating ‘one pass’ underground utility surveys to be undertaken.

CALIBRATION
The DXL4 Cable Avoidance Tools do not require periodic recalibration. A fully Automatic Daily Self Test (ADST) tests and confirms that they are functioning at their optimum level each day.

AUTOMATIC DAILY SELF TEST (ADST)
The DXL4 Cable Avoidance Tools perform an Automatic Daily Self Test (ADST). The ADST checks the functionality of the locator including the receiving aerials each day when it is first switched on. The SGV4 Signal Generator also performs a comprehensive Automatic Daily Self Test (ADST).

At the start of each day of use, a positive Automatic Daily Self Test result gives confirmation to the operator that the kit is working at the optimum level.

The result of this test is recorded and stored on memory within the products in-built data files and can be downloaded onto a PC at any time within the following 12 months*.

PRODUCT VALIDATION CERTIFICATION
These test results can be used to produce a Product Validation Certificate using the C.Scope PC Toolkit. In addition, any results of the Self Test that have been carried out in the last twelve months* are available.

C.Scope authorised Service Centres are also able to provide third-party Test and Conformity Certification should you require it to comply with client or internal requirements.

HIGH RESOLUTION BACKLIT DIGITAL DISPLAY
The DXL4 has a large, clear and easy to read backlit LCD mounted behind a protective polycarbonate lens. The display indicates detection mode, signal peak level, depth, signal strength and battery condition. It also displays the Automatic Daily Self Test results.

DETACHABLE SPEAKER
The speaker can be easily detached for use in noisy work environments.

ROBUST AND DURABLE CONSTRUCTION
The DXL4s twin wall construction is robust and durable. It also provides IP65 standard protection against dust and water ingress.

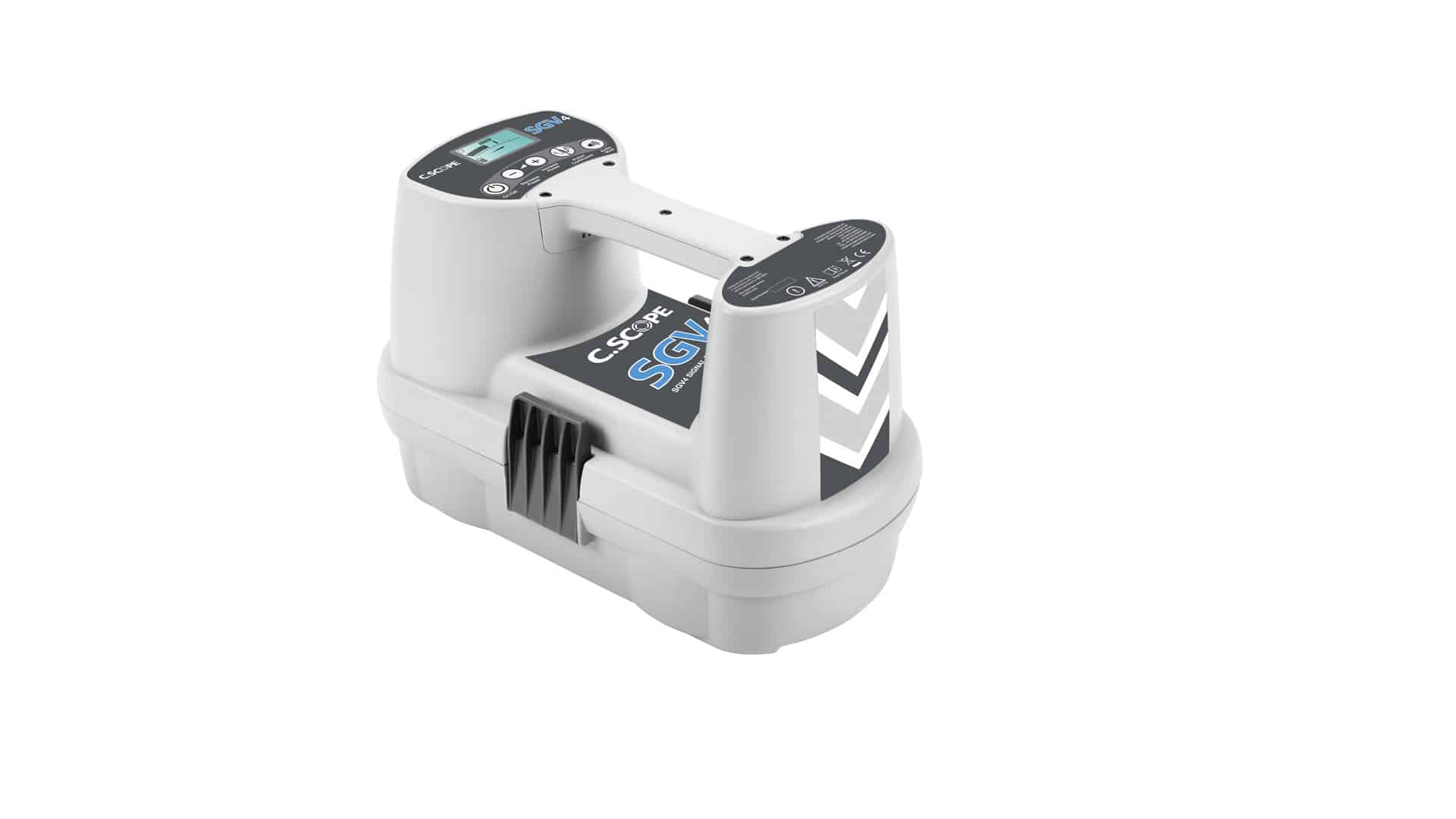

SGV4 SIGNAL GENERATOR:

The C.Scope SGV4 Signal Generator is designed for use alongside a CXL4 or DXL4 Cable Avoidance Tool. It enables significantly more underground utilities to be detected including street lighting cables.

SIMULTANEOUS DUAL-FREQUENCY
The simultaneous dual-frequency 33kHz and 131kHz signal output of the Signal Generators is ideal for maximising the number of buried services that can be energised and then detected.

The SGV4 Signal Generator can apply the dual frequency signal without direct connection to buried services, using either a Signal Clamp or the simple induction method from ground level, providing a significant improvement in the detection of the smaller diameter or poorly earthed cables.

THREE SIGNAL APPLICATION TECHNIQUES
The SGV4 offers three alternative ways to apply a Signal Generator signal:

Direct Connection allows specific pipes or cables to be individually traced, identified and their depths measured. The use of Signal Clamps, Signal Injectors and Direct Connection leads make this mode the most effective method for pinpointing pipes and cables.

If it is difficult or inconvenient to use Direct Connection, then the Wraparound technique can be utilised to successfully energise a street or car park lighting cable.

Induction allows the Signal Generator to induce a detectable and traceable signal to previously unknown, undetected or inaccessible underground metal pipes or cables.

HIGH POWER SIGNAL
The fully adjustable One Watt Power Output of the SGV4 means that deeper and less conducting pipes and cables can be effectively energised and then traced over ever longer distances.

It also features a FOUR position power level adjustment so the operator has total control of how much power is in use and when.

PULSED/CONTINUOUS SIGNAL OUTPUT
A Pulsed or Continuous signal output allows operators to switch to the Pulsed Mode at the push of a button in high interference situations and keep on tracing. The SGV4 has a clear audible signal output to indicate when it is in operation.

A useful in-built audio mute control is also included.

DATA LOGGING
To compliment and support in-built data logging on the Cable Avoidance Tools, the SGV4 Signal Generator also has full data logging capability. A years worth of data can be stored, in normal usage, on both the Locator and Signal Generator. This can be conveniently transferred at any time via a USB to a supervisors PC for analysis.

CALIBRATION
The SGV4 Signal Generators do not require periodic recalibration. A fully Automatic Daily Self Test (ADST) tests and confirms that they are functioning at their optimum level each day.

AUTOMATIC DAILY SELF TEST (ADST)
The SGV4 Signal Generators perform a comprehensive Automatic Daily Self Test (ADST).

At the start of each day of use, a positive Automatic Daily Self Test result gives confirmation to the operator that the kit is working at the optimum level.

The result of this test is recorded and stored on memory within the products in-built data files and can be downloaded onto a PC at any time within the following 12 months*.

PRODUCT VALIDATION CERTIFICATION
These test results can be used to produce a Product Validation Certificate using the C.Scope PC Toolkit. In addition, any results of the Self Test that have been carried out in the last twelve months* are available.

C.Scope authorised Service Centres are also able to provide third-party Test and Conformity Certification should you require it to comply with client or internal requirements.

HIGH RESOLUTION BACKLIT DIGITAL DISPLAY
The SGV4 has a large, clear and easy to read backlit LCD mounted behind a protective polycarbonate lens. The display indicates functions selected, power level, connection quality and battery condition. It also displays the Automatic Daily Self Test Results..
